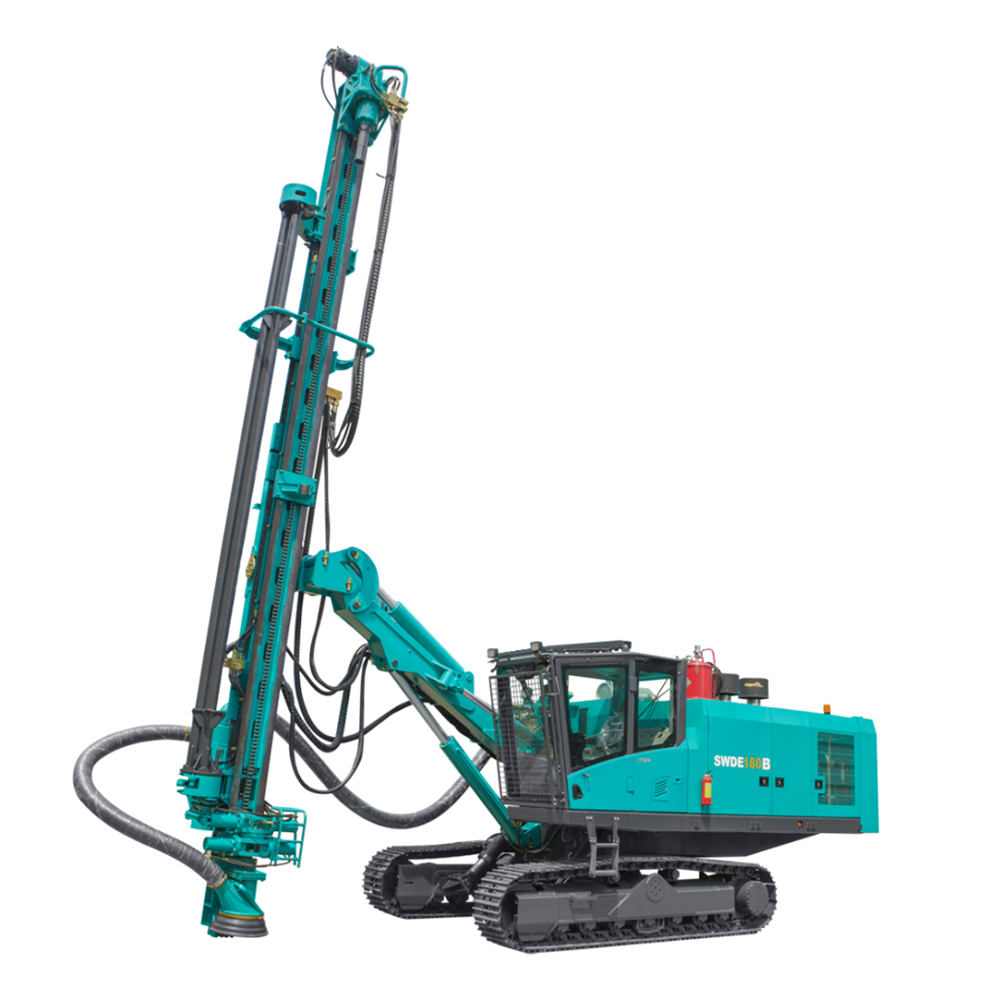

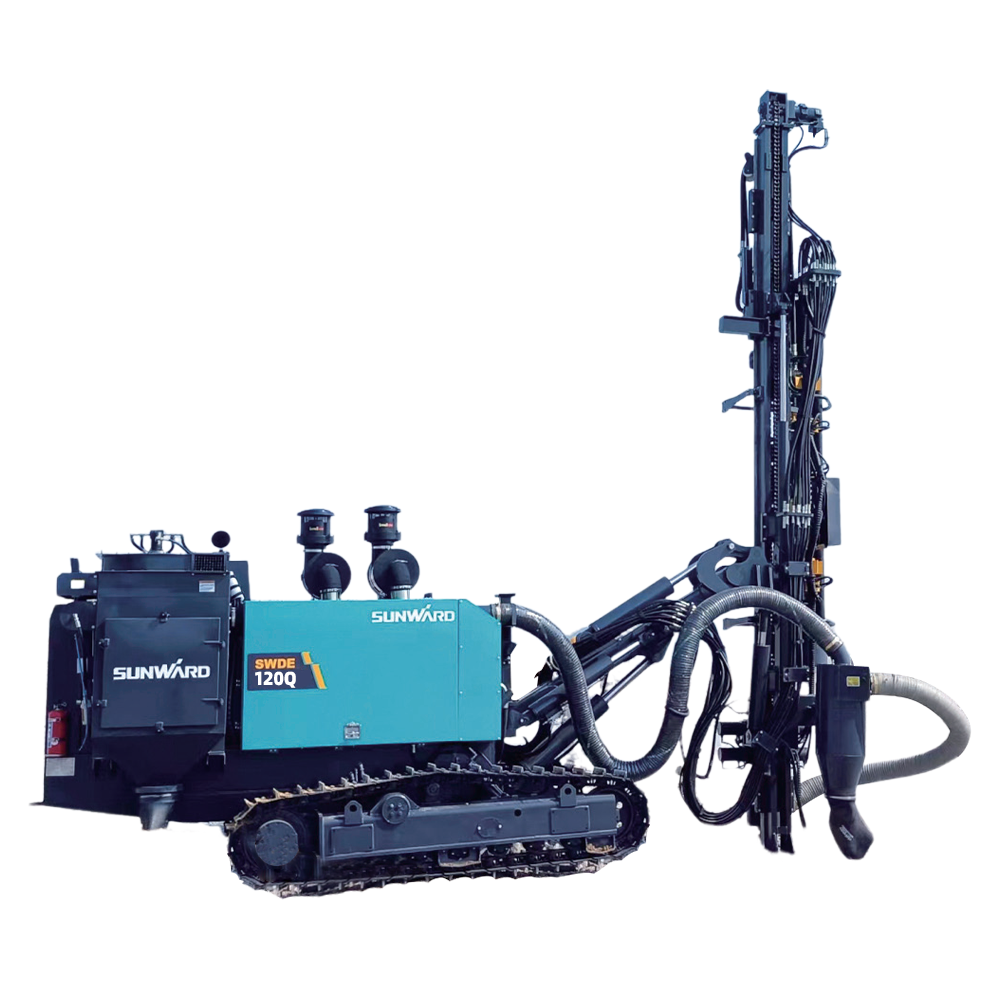

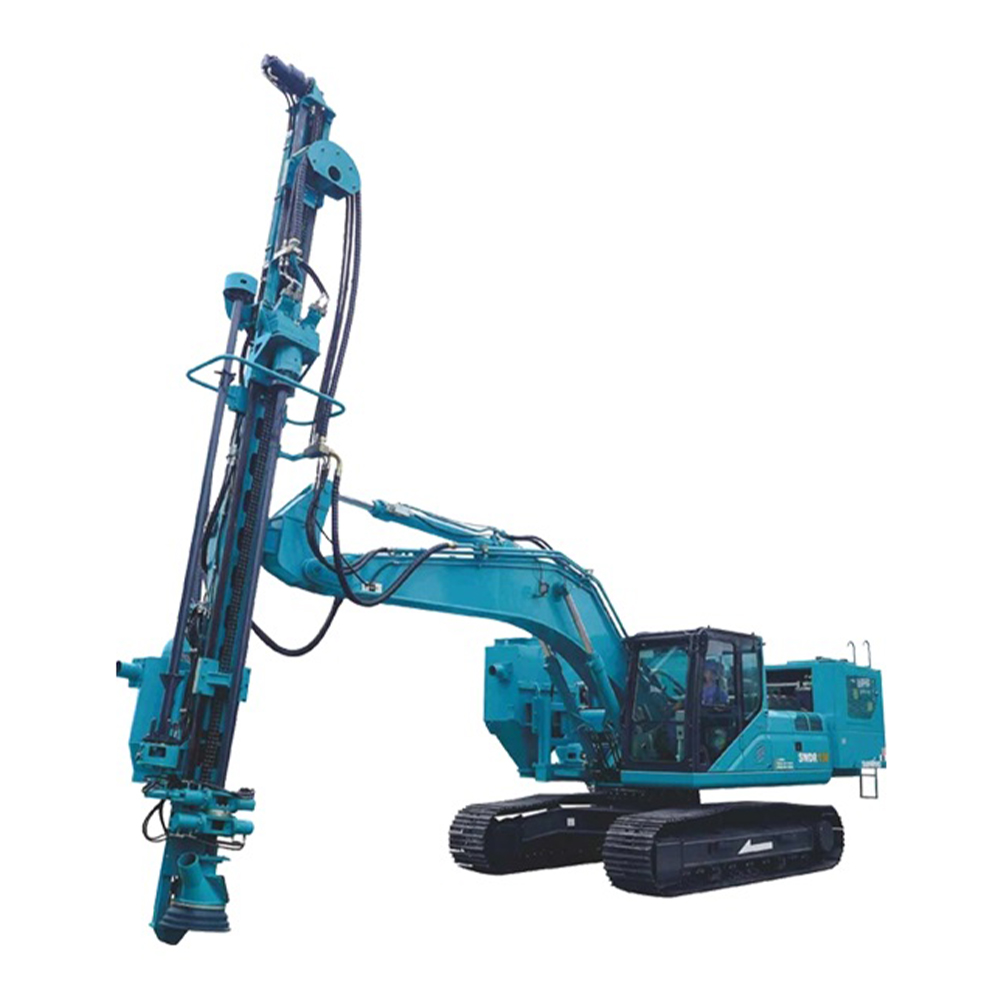

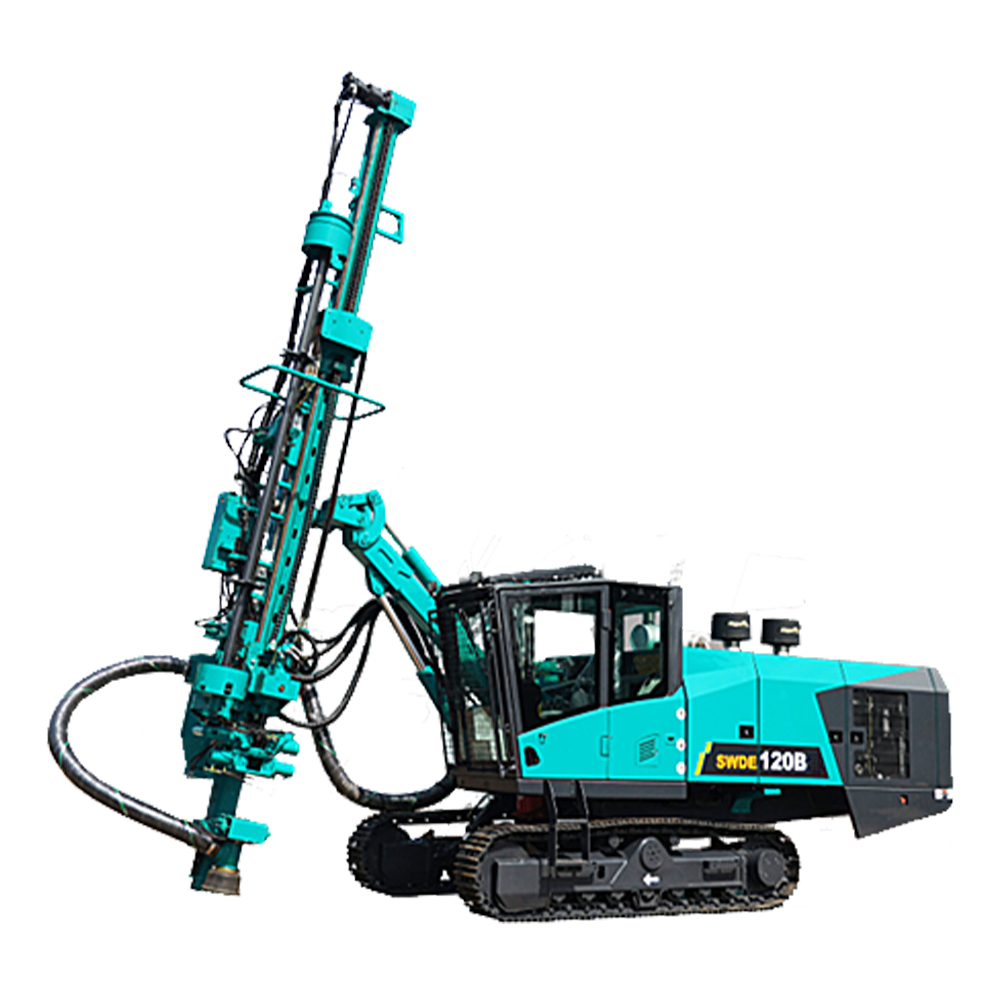

Down-the-hole (DTH) drilling is an advanced and efficient technique widely utilized in the industry to penetrate hard rock formations and sizeable boulders, making it a popular choice for various complex drilling projects. This method is particularly effective because it integrates a percussion hammer directly behind the drill bit, allowing the energy from the hammering action to be transmitted almost directly to the drill bit. This direct transfer of energy significantly enhances the drilling efficiency and precision, especially in challenging ground conditions.

● The Mechanics of DTH Drilling

○ Hammer and Drill Bit

At the core of DTH drilling is the hammer, which is a specialized component attached to the bottom of the drill rod and mounted onto the drill bit. Unlike other drilling methods where the hammer is located at the surface, the hammer in DTH drilling is positioned downhole, directly above the drill bit. Compressed air or hydraulic fluid activates the hammer, causing it to deliver rapid, high-energy impacts to the bit. This hammering action fractures and breaks the rock, while the rotary motion of the bit grinds the cuttings, facilitating deeper and more efficient penetration into the subsurface materials.

○ Flushing Current and Cuttings Removal

A critical aspect of DTH drilling is the removal of the loosened drill cuttings, which is achieved through a flushing current. The compressed air used to power the hammer also serves to carry the rock cuttings to the surface. As the drill bit breaks through the rock, cuttings are immediately lifted and cleared by this continuous flow of air. This mechanism ensures that the drilled hole remains clean, thus maintaining drilling efficiency and preventing blockages that could otherwise impede progress.

○ Air-lift Exhaust

The air-lift exhaust plays a pivotal role in removing debris and maintaining a clear drilling path. This system works by moving the cuttings and debris up the inside of the drill pipe, effectively clearing the hole of any obstructions. The upward movement of debris not only ensures a cleaner hole but also enhances the overall efficiency of the drilling process by reducing downtime associated with clearing blockages manually.

● Applications and Benefits of DTH Drilling

○ Versatility and Depth

DTH drilling is highly versatile and can be used in various environments, including populated areas where precision and minimal disruption are crucial. Its ability to reach depths exceeding 1,000 feet makes it suitable for numerous applications, from water well drilling and geothermal installations to mineral exploration and construction projects. The precision of DTH drilling ensures that the drilled holes maintain their intended trajectories, which is essential for tasks requiring accuracy, such as installing foundation piles or anchoring systems.

○ Environmental Considerations

In addition to its efficiency and precision, DTH drilling can also be adapted to reduce environmental impact. For instance, water-powered techniques can be substituted for oil-based lubrication systems to minimize ecological footprints. Utilizing water as a lubricant not only conserves oil resources but also reduces the contamination risks associated with oil spills, making DTH drilling a more environmentally friendly option.

● Concluding Thoughts

In conclusion, DTH drilling represents a highly effective and versatile method for penetrating tough geological formations. Its unique downhole hammer mechanism, efficient debris removal systems, and adaptability to various environmental conditions make it an invaluable tool in modern drilling operations. By ensuring precision, depth, and minimized environmental impact, DTH drilling continues to be a preferred technology for a wide range of drilling applications, setting a benchmark for efficiency and reliability in the industry.

When it comes to selecting the appropriate drilling technique for your project, understanding the strengths and weaknesses of Down-the-Hole (DTH) drilling versus top hammer drilling is crucial. Both methods have their unique advantages, but the decision often hinges on factors such as depth, rock hardness, and precision requirements.

Understanding DTH Drilling

DTH drilling is particularly effective for deep-hole applications. The technique involves a hammer that operates at the bottom of the hole, directly behind the drill bit. This setup minimizes energy loss, making it highly efficient for drilling deep, straight holes. One of the significant advantages of DTH drilling is its ability to produce holes with minimal deviation, ensuring high precision. The accuracy of DTH drilling is further enhanced by its capability to handle a variety of rock types, making it a versatile option for different geological conditions.

Additionally, DTH machines are designed to operate quietly, reducing noise pollution—a significant consideration for projects in noise-sensitive areas. The operational quietness does not compromise its effectiveness, as DTH drilling maintains high penetration rates in hard rock formations, even those with hardness over 200Mpa. However, it’s worth noting that using DTH drilling in softer rock may lead to a waste of energy and reduced efficiency.

Advantages of Top Hammer Drilling

Top hammer drilling, on the other hand, excels in shallower depths. The hammering action occurs at the top of the drill string, transferring energy down through a series of rods to the drill bit. This method is particularly suitable for mining and construction operations where speed and lower fuel consumption are priorities. Top hammer drills offer faster penetration rates compared to DTH drills, making them an excellent choice for projects requiring quick and efficient drilling within shorter depths.

However, the trade-off for this speed and efficiency is often precision. Top hammer drills may not produce as straight and accurate holes as DTH drills. They are also limited by a maximum practical hole diameter of around 140mm in production environments, compared to the 229mm typically achievable with DTH drilling.

Applications and Suitability

The choice between DTH and top hammer drilling is influenced by the specific requirements of the drilling project. For instance, if the project demands deep, precise holes in hard rock formations, DTH drilling would be the superior choice. The robust design of DTH machines ensures durability and consistent performance, particularly in challenging geological conditions.

Conversely, for operations requiring rapid drilling in softer or medium-hard rock at shallower depths, top hammer drilling offers a more cost-effective and time-efficient solution. The lower fuel consumption of top hammer drills can also lead to significant operational cost savings.

Conclusion

In summary, while both DTH and top hammer drilling techniques have their merits, the decision on which method to employ depends largely on the specific requirements of the project. DTH drilling stands out for deep-hole applications requiring high precision and consistency in various rock types. Top hammer drilling, with its faster penetration rates and lower fuel consumption, is apt for shallower, more rapid drilling tasks. By carefully considering the project’s depth, rock hardness, and precision needs, engineers and project managers can select the most appropriate drilling method, ensuring both efficiency and effectiveness.

DTH 钻头，又称潜孔钻头，是钻井领域的一项关键技术，尤其适用于钻穿各种岩石。这种高度专业的钻头设计用于与潜孔锤配合使用，是采矿、建筑、地热钻井等应用中的必备工具。

DTH 钻头的力学原理

● DTH 钻头的工作原理

DTH 钻头与 DTH 锤相结合，使用压缩空气驱动锤击机构。这会产生冲击运动，并结合旋转动作，使钻头能够同时锤击和切割岩石。这种双动钻孔方法可确保更高的效率和精度，从而减少钻深且准确的孔所需的时间和精力。

● 设计特点和优点

DTH 钻头的设计针对具有挑战性的钻井条件进行了优化。主要特点包括：

- 优化的头部长度：头部长度经过专门设计，可为硬质合金钻头提供最大的钢支撑，确保耐用性和有效的钻井性能。-
深面槽：这些槽有利于出色的冲洗，从孔中去除岩屑并保持钻井操作的效率。-
强力切削结构：切削结构设计为强力的，使钻头能够更有效地穿透坚硬的岩层。

多功能性和效率

● 面部设计和尺寸

DTH 钻头有各种表面设计，包括平面、凹面、凸面、凸凹面和凹陷面。每种设计都有特定的用途，并根据钻井环境和期望结果进行选择。例如，凸面设计可能适合某些岩石类型，而凹面设计可能最适合其他岩石类型。此外，DTH 钻头有不同的尺寸以适应各种孔径，从而增强了其在各种钻井应用中的多功能性。

● 不同行业的应用

DTH 钻头的多功能性使其在多个行业中都具有无价的价值。在采矿业中，它们用于钻爆破孔，确保高效开采矿物。在建筑业中，DTH 钻头有助于为建筑物和基础设施打地基孔。地热行业依靠这些钻头来钻取地热资源。无论是哪个行业，其共同点是钻头能够在高压条件下工作，以非凡的精度钻得更深、更远。

利用 DTH 钻孔提高生产效率

DTH 钻井的有效性在于它能够保持稳定而强大的冲击力，从而提高钻进速度和作业效率。在这种情况下使用 DTH 钻头可以确保即使是最坚硬的岩层也能相对轻松地处理。这些钻头的高性能特性还可以最大限度地减少停机时间，因为它们坚固的结构和设计减少了更换和维护钻头的频率。

● 结论

总之，DTH 钻头是各行各业高效钻井作业的基石。其专业设计，包括优化的头部长度、深面凹槽和强力切削结构，使其适用于广泛的应用。通过与 DTH 钻井作业无缝集成，这些钻头能够快速准确地穿透岩层，确保行业能够实现其钻井目标，同时提高生产率并降低运营成本。DTH 钻头技术的不断发展有望在未来进一步提升 DTH 钻井的能力和应用。

Top hammer and down-the-hole (DTH) drilling are two prevalent methods in the field of rock excavation, each boasting unique strengths suited to varying operational needs and geological conditions. This article delves into the fundamental differences between these two techniques, highlighting aspects such as accuracy, depth capabilities, noise levels, drilling methods, applications, hole sizes, drilling speeds, fuel consumption, and mobility.

Accuracy

One of the foremost differences between top hammer and DTH drilling lies in their accuracy. DTH drilling is renowned for producing straighter holes with minimal deviation, making it the preferred choice for projects demanding high precision. Top hammer drilling, while effective, may exhibit more deviation in hole trajectories due to its method of impact delivery through the drill rod.

Depth Capabilities

Top hammer drilling is typically more effective for shorter depths. The percussion mechanism used in this method is highly productive but tends to lose efficiency as drilling depth increases. Conversely, DTH drilling excels in deep hole applications. The DTH hammer, located at the bottom of the drill string, ensures that energy loss is minimized, allowing for efficient penetration in deep drilling operations.

Noise Levels

Noise generation is another distinguishing factor. DTH drills are generally quieter compared to top hammer drills. This reduced noise level can be a significant advantage in urban areas or environments where noise pollution is a concern.

Drilling Method

The operational mechanics of top hammer and DTH drilling are fundamentally different. Top hammer drilling employs a percussion mechanism where the drill bit is struck from above, transferring impact energy through the drill rod. In contrast, DTH drilling utilizes a rotary cutting, crushing, and wearing drill. The hammer mechanism in DTH drilling is located directly behind the drill bit, enhancing drilling efficiency by minimizing energy loss through the drill string.

Applications

Top hammer drilling and DTH drilling cater to different applications. Top hammer drilling is commonly used for drilling blast holes, anchor holes, and exploratory drilling. It is especially effective in operations requiring high mobility and rapid setup. On the other hand, DTH drilling is favored for more demanding projects that require versatility across various geological conditions, such as in mining and large-scale construction projects.

Hole Size

The maximum hole size capabilities also differ between the two methods. Top hammer drilling is typically suitable for hole sizes up to 140 mm in a production environment. DTH drilling, however, can accommodate larger hole sizes, often up to 229 mm. This makes DTH drilling more versatile for projects requiring larger boreholes.

Drilling Speed

Speed is another critical factor where top hammer drilling generally has the upper hand. The method tends to offer faster penetration rates compared to DTH drilling, which can be advantageous in projects where time efficiency is paramount.

Fuel Consumption

In terms of fuel efficiency, top hammer drilling is more economical. It consumes less fuel compared to DTH drilling, translating to cost savings, especially in large-scale or long-term projects.

Mobility

Lastly, mobility is a significant consideration. Top hammer rigs are typically more mobile and easier to maneuver in confined or difficult-to-access sites. This attribute makes them particularly suitable for operations requiring frequent relocation or in rugged terrains.

In summary, the choice between top hammer and DTH drilling hinges on specific project requirements. DTH Drilling, with its accuracy, depth capabilities, and versatility in various geological conditions, stands out for demanding and precision-dependent applications. Conversely, top hammer drilling, with its speed, fuel efficiency, and mobility, offers substantial advantages in shorter, high-mobility projects. Understanding these differences ensures the selection of the most appropriate drilling method, optimizing both operational efficiency and project outcomes.
