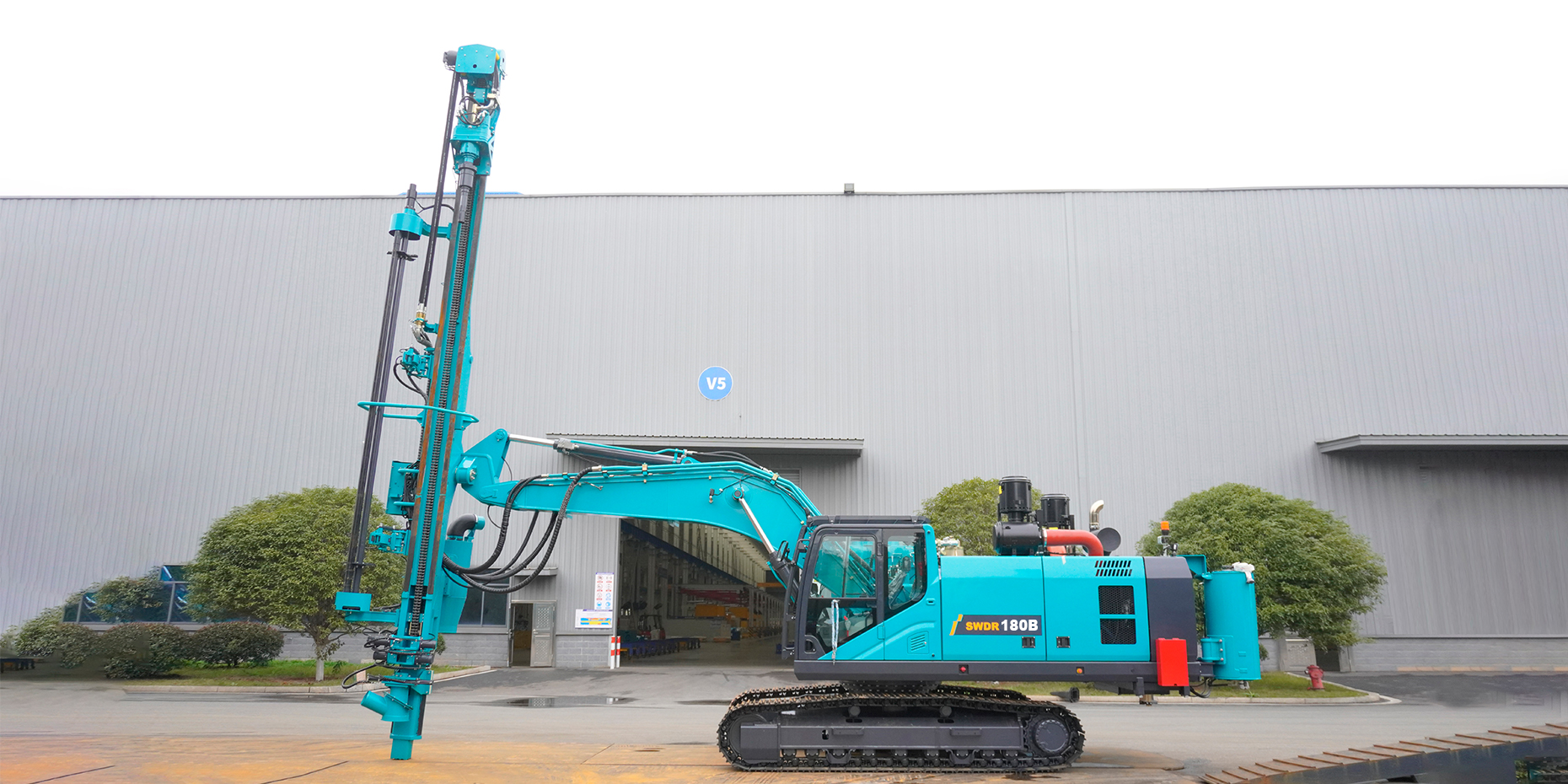

SWDE200RB* excavator chasis DTH drill rig with the 360° roration of the excavator body
Product description
Drilling method: Down-the-hole
Hole diameter: 165-203mm
DTH-hammer: 6 ,7 and 8 inches
-
●TheSWDR series is surface down-the-hole drilling rigs which have a drilling diameter of 105-203mm and a max drilling depth of 30
-
●Meeting the drillingneeds of vertical, inclined and horizontal blasting holes under various geological conditions, with high hole-forming efficiency, low energy consumption and environment-friendly skills.
-
●The uniqueone-click switching between down-the-hole and cutting mode allows drilling operations on both soft and hard rock stratum, which expands the application range, reduces construction costs.
Quick facts
Operation parameters
Drilling range
165mm-203mm
DTH hammer
6", 7", 8"
Drill rod diameter
114mm,127mm,140mm
Drill rod length
5m×6m
Maximum hole depth
30m
Upper frame rotation angle
360°
Air compressor
Working pressure
24Bar
FAD
34.6m³/min
Engine
Brand
Cummins
Model
QSM15-563-CS3
Power
563/2100kW/rpm
Fuel tank
1100 L
Feed system
Total length
9800mm
Feed force
50kN
Carrier
Tramming speed
3.2/4.5 km/h
Traction force
200kN
Gradeability
20°
Ground clearance
480mm
Rotary head
Rotation speed
0-200 rpm
Torque
7000 Nm
Dimension
Weight
34000 kg
L × W × H (Working)
10.7x4.3x9.8m
L × W × H (Transportation)
15.9x3.45x3.9m
-

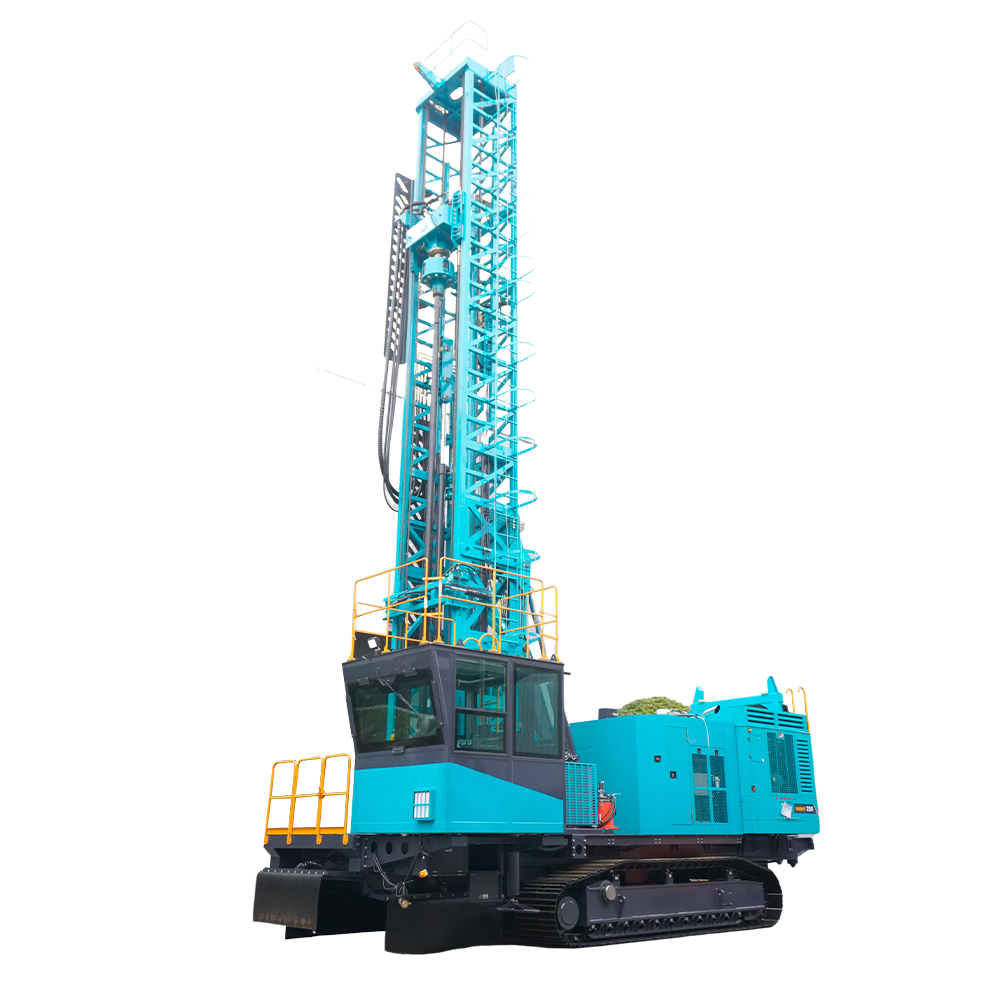

SWDRT270E
Drilling method: Rotary Typeofpower: Electric Rotary hole diameter: 200-270mm Max hole depth: 48m ●The SWDRT series is rotary blasthole drill rigs with high axial pressure, high torque, high rotation
Read more > -
CYTM41
Read more > -
SWDE152Q
Drilling method: Down-the-holeHole diameter: 90-165mmDTH-hammer: 3.5、4 and 5 inches ●The SWDE series is surface down-the-hole drilling rigs which have a drilling diameter of 90-230mm and a max drillin
Read more > -
SWDE152RS*
Drilling method: Down-the-holeHole diameter: 115-165mmDTH-hammer: 4, 5 and 6 inches ●The SWDE152RB* series is surface down-the-hole drilling rigs which have a drilling diameter of 115-230mm and a max
Read more >
-

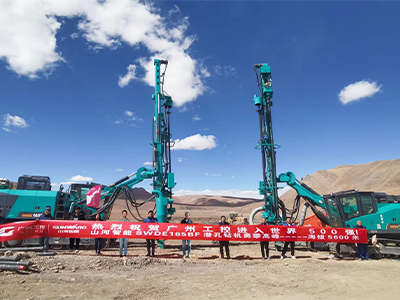

Drill at the Lead-Zinc Mine in forbidden area of life with altitude 5600m
Involved Machine:SWDE165B Project Overview:The project is about the application in high-altitude areas at Xinjiang Huoshaoyun Lead-Zinc Mine. Despite being in the forbidden area of life with an altitude of 5600m, our advancedrock drilling rig SWDE165B fro
Read more > -

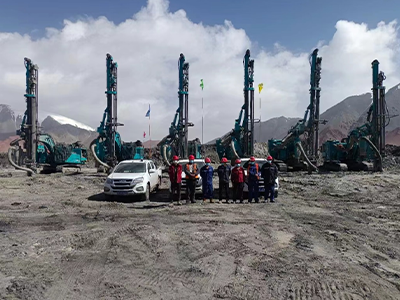

The plateau project operates at an altitude of 4910 meters
Involved Machine: SWDR138B Project Overview: The working platform of this project has an average altitude of 4,910m, with the local altitude surpassing 5,000 meters.
Read more > -

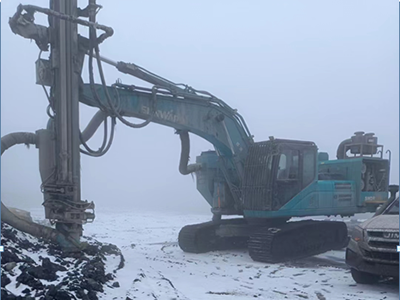

The plateau project operates at an altitude of 4910 meters
Involved Machine: SWDR138B Project Overview: The working platform of this project has an average altitude of 4,910m, with the local altitude surpassing 5,000 meters.
Read more > -

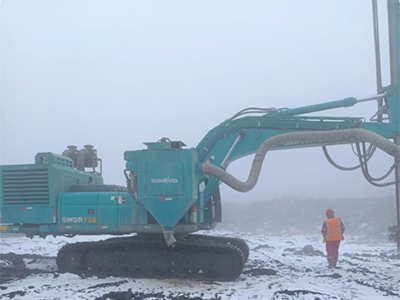

copy - Outstanding Performance of SWDH102S Drilling Rigs in The Line Project in UAE
