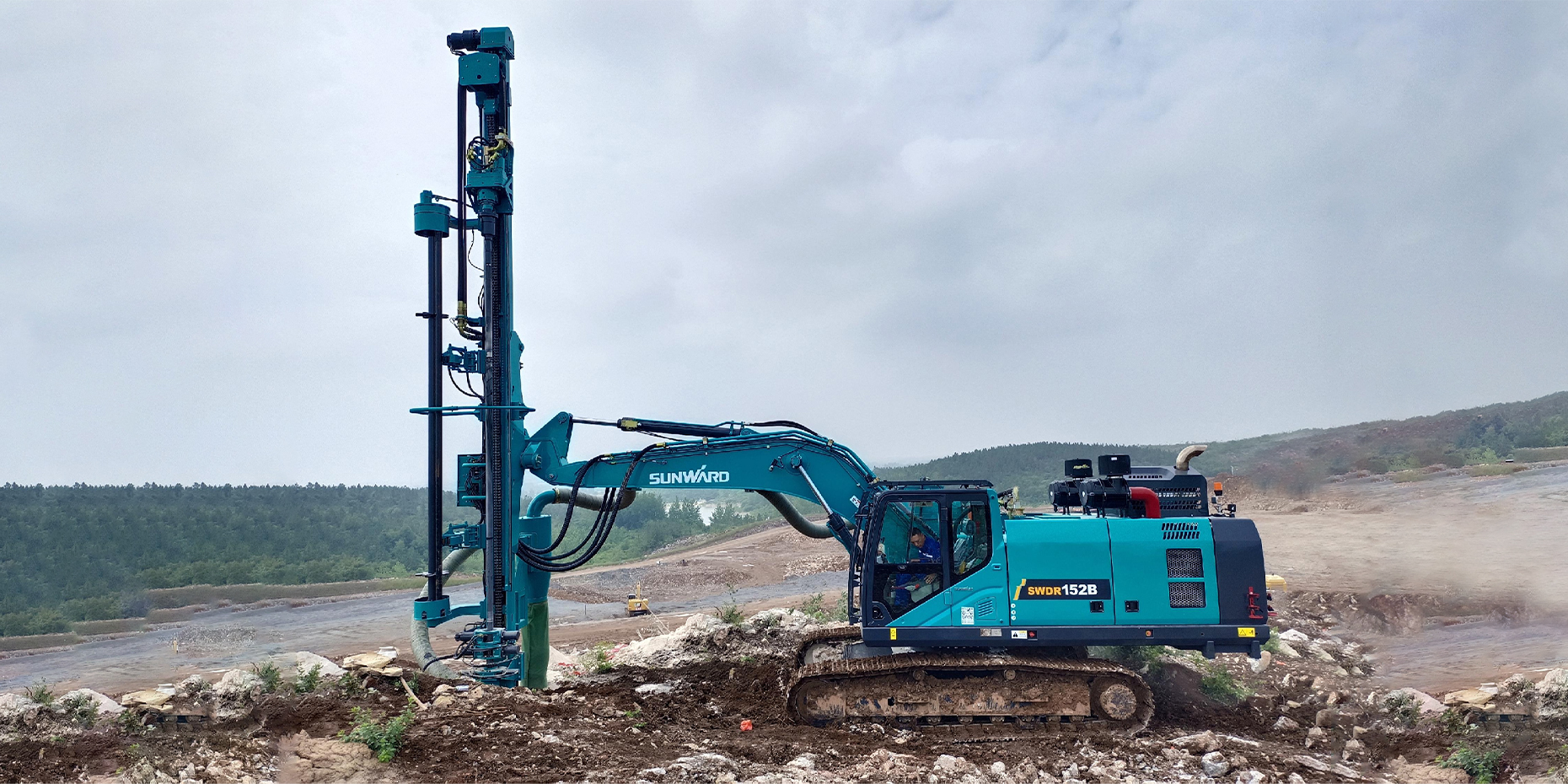

SWDE152RS* excavator body DTH drill rig
Product description
Drilling method: Down-the-hole
Hole diameter: 115-165mm
DTH-hammer: 4, 5 and 6 inches
-
●The SWDE152RB* series is surface down-the-hole drilling rigs which have a drilling diameter of 115-230mm and a max drilling depth of 30
-
●Meeting the drillingneeds of vertical, inclined and horizontal blasting holes under various geological conditions, with high hole-forming efficiency, low energy consumption and environment-friendly skills.
-
●The uniqueone-click switching between down-the-hole and cutting mode allows drilling operations on both soft and hard rock stratum, which expands the application range, reduces construction costs.
Quick facts
Operation parameters
Drilling range
115mm-165mm
DTH hammer
4"、5"、6"
Drill rod diameter
76mm,89mm,102mm
Drill rod length
5m×6
Maximum hole depth
30m
Upper frame rotation angle
360°
Air compressor
Working pressure
21Bar
FAD
21.8m³/min
Engine
Brand
Cummins
Model
YC6GMK400-K20
Power
294/1900 kW/rpm
Fuel tank
1100 L
Feed system
Total length
9800 mm
Feed force
50 kN
Carrier
Tramming speed
3.5/5.6 km/h
Traction force
200 kN
Gradeability
25°
Ground clearance
480 mm
Rotary head
Rotation speed
0-200 rpm
Torque
5000 Nm
Dimension
Weight
28000 kg
L × W × H (Working)
10.7x3.7x9.8 m
L × W × H (Transportation)
15.6x3.0x3.6 m
-
SWDQ120
Drilling method: Separated Down-the-holeHole diameter: 90-152mmDTH-hammer: 3.5, 4 and 5 inchesEngine brand: YuChai● SWDQ series crawler hydraulic surface down-the hole drilling rig, with comprehensive
Read more > -
SWDRT200B
Drilling method: DTH/Rotary Typeofpower: Diesel Rotary hole diameter: 180-216mm DTH hole diameter: 165-230mm Max hole depth: 48m ●The SWDRT series is rotary blast-hole drill rigs with high axial press
Read more > -

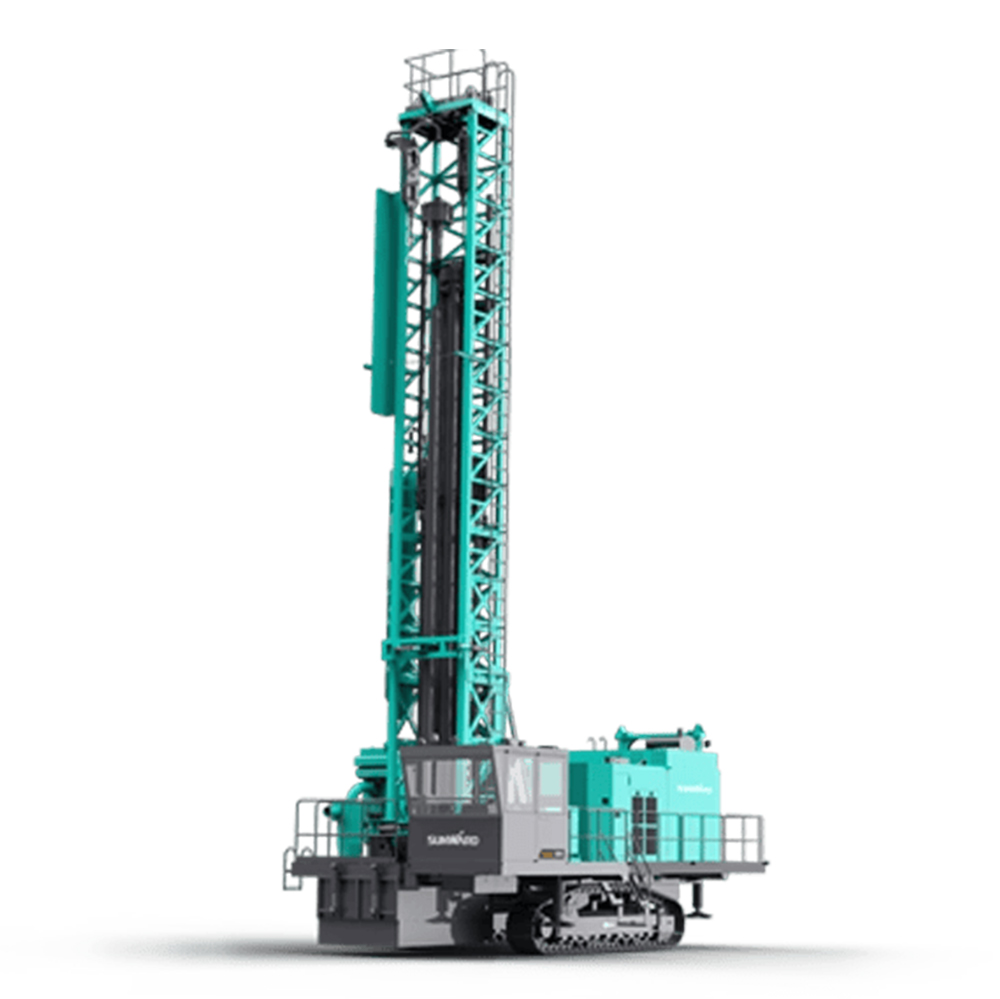

SWDRT270B
Drilling method: Rotary Typeofpower: Diesel Rotary hole diameter: 216-270mm Max hole depth: 48m ●The SWDRT series is rotary blasthole drill rigs with high axial pressure, high torque, high rotation sp
Read more > -

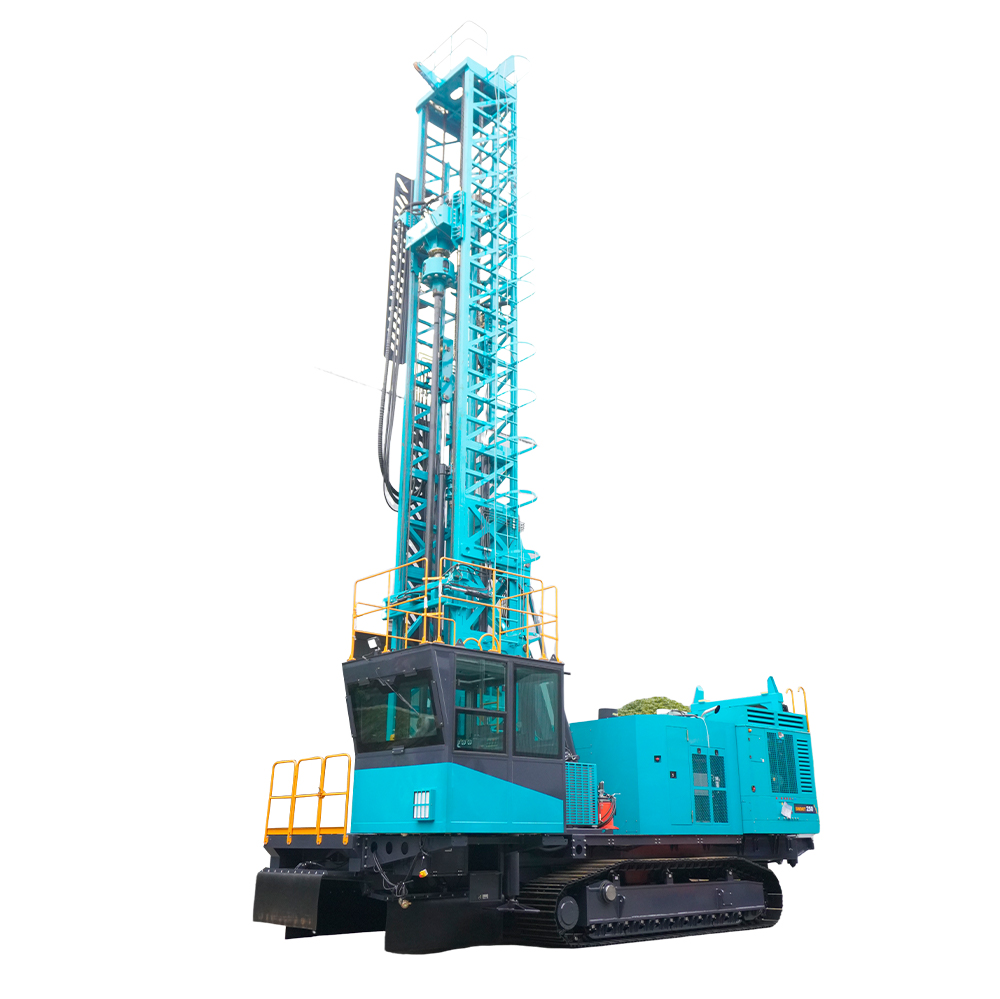

SWDRT200E
