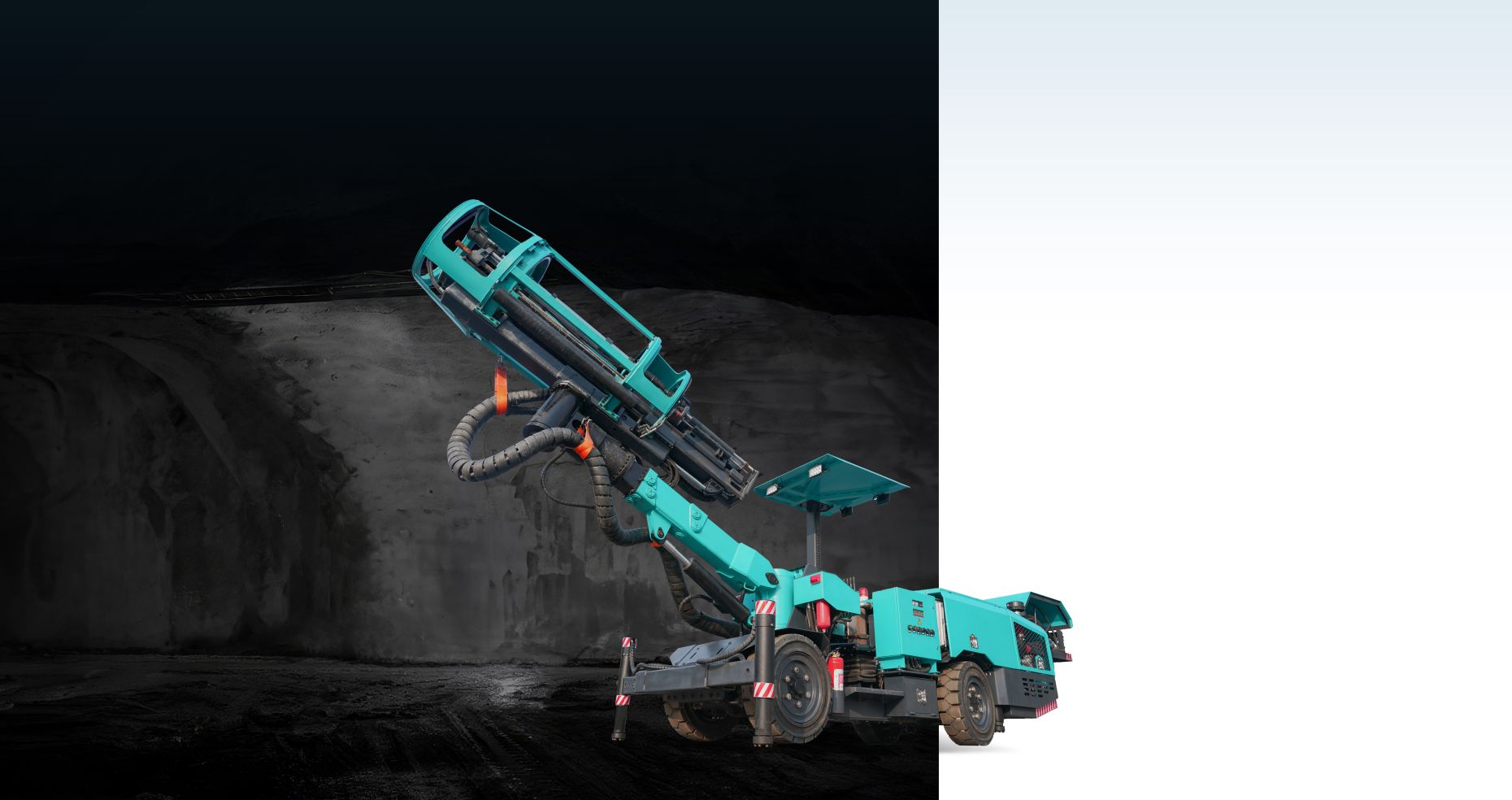

Reliable Supplier of CYTM41 Underground Mining Machines

underground mining machines

Product description

As a leading supplier of underground mining machines, Sunward presents the CYTM41 designed to enhance efficiency, safety, and environmental responsibility in mining operations.

Quick facts

Model
Applicable tunnel size (min) - W&H
3.5m×3.5m
Coverage width (max)
6400mm
Coverage height (max)
6800mm
Ground clearance
300mm
Anchor length
1.5m-2.5m
Fixed length
1.4m
Boom type
ZB 30M
Anchor mechanism type
ITUC1.5-2.5
Control System
DCS
Hydraulic rock drill
HC28
Impact power
10Kw
Length, tramming
10500mm
Width, tramming
1800mm
Hight roof up/down
2200mm/2900mm
Turning radio inner
2700mm
Turning radio outer
5100mm
Tramminig speed
<10 km/h
Gradeability(max)
14°
Total input power
66kW
Main motor power
55kW
Diesel engine power
55.8kW
Weight
15000kg

Downloads
