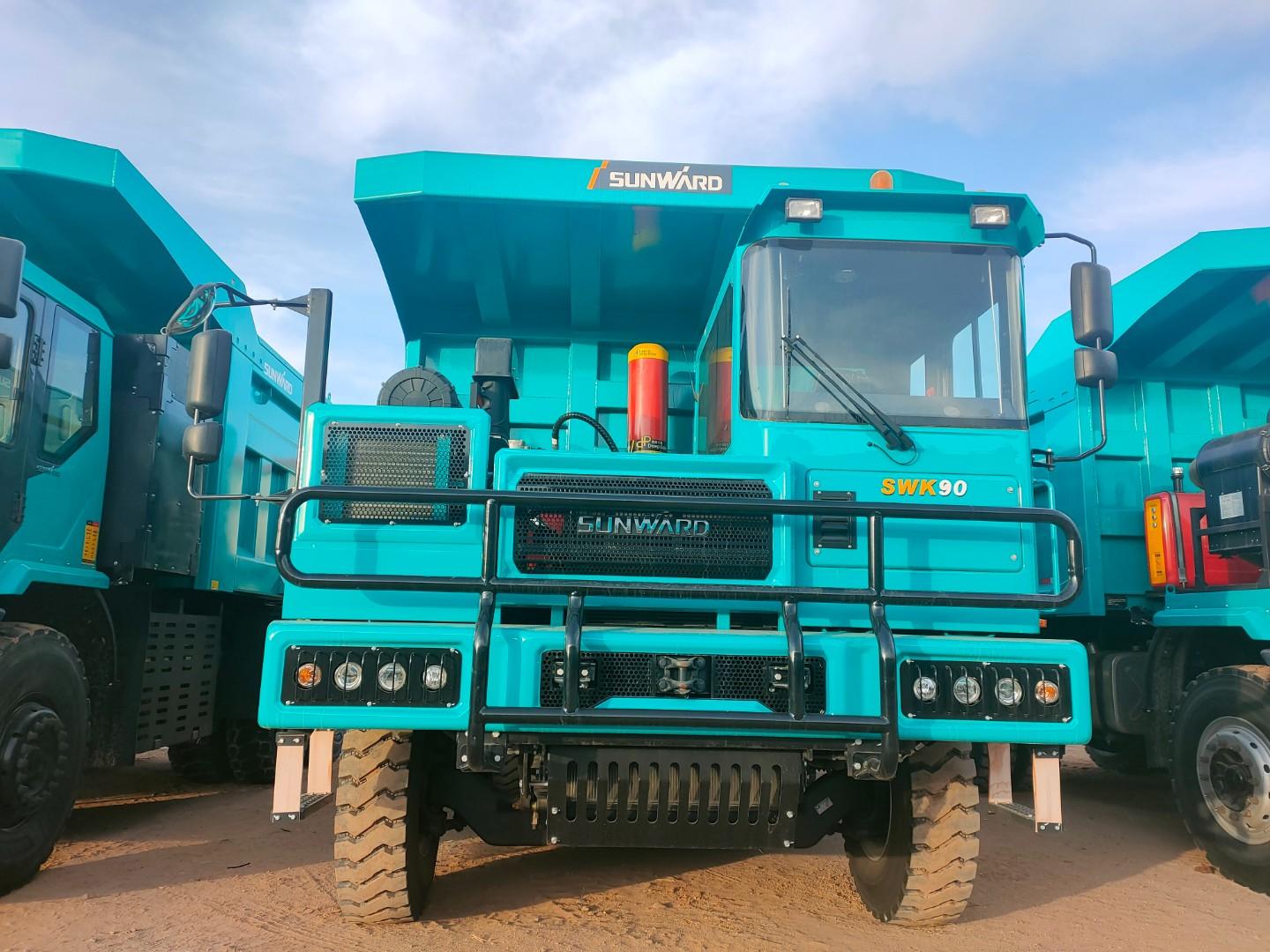

Mining dump truck SWK90
Product description
Quick facts
Overall size
9000x3450x3750 mm
Maximum total weight
90000 kg
Rated load capacity
60000 kg
Curb weight
30000 kg
type of drive
6x4
Wheelbase
3775+1550 mm
Base (front/rear wheel)
2680/2500 mm
Clearance
300 mm
Approach/departure angle
29/48 city.
Maximum speed
40 km/h
Max. gradeability
35 percent
Body capacity
33 cubic meters
Climbing angle
48 city.
Engine
YC6K460-GT30
Power
338 kW / 1900 rpm
Transmission
7DS220 2200 N·m
Bridge load
25+35+35 v
Tires
14.00-25
Body size
5800x3200x1800 mm
Body plate thickness
16/12/14
Body material
high strength wear plate
-
