SWDT140* Hydraulic Top-hammer drill rig, 89-140mm

SWDT140*

SWDT140* Top-hammer drill rig is equipped with a high-efficiency hydraulic rock drill

Product description

Drilling method: Top hammer
Hole diameter: 89-140mm

● The SWDT series is the surface top hammer drill rigs with a high-eficiency hydraulic rock drill, with fast drilling rate, low energy consumption, flexible maneuverability and strong

Quick facts

Operation parameters
Hole diameter
89-140mm
Rod
T51/GT60
Tube length
3660/4265mm
Maximum hole depth
25/29m
Hydraulic rock drill rig
Model
HD500/HC160Q
Impact power
33/27kW
Slewing torque
2005/2031Nm
Slewing speed
0-127rpm
Air compressor
Working pressure
10bar
FAD
14.6m³/min
Engine
Brand
CAT
Model
C9.3B-280-G3
Power rating
280/1800kW/rpm
Fuel tank volume
700L
Feed system
Total length
7300/9300mm
Feed extension
1200/1600mm
Feed force
40kN
Pitch angle
140°
Turning angle
-20°~90°
Drill boom
Type
Telescopic boom
Lifting angle
-22°~45°
Folding angle
/
Swing angle
-20°~13°
Carrier
Tramming speed
3km/h
Traction force
180kN
Gradeability
25°
Track oscillation
±10°
Ground clearance
450mm
Dimension
Weight
23000kg
L×W×H (working)
10.1×2.64×9.3m
L×W×H (transportation)
13×2.64×3.5m

Downloads

Inquiry Now Send Email

SWDE138B

Drilling method: Down-the-holeHole diameter: 115-152mmDTH-hammer: 4 and 5 inches● The SWDE series is surface down-the-hole drilling rigs which have a drilling diameter of 90-230mm and a max drilling d
Read more >
SWDE180N

Drilling method: Down-the-holeHole diameter: 138-203mmDTH-hammer: 5 and 6 inches ●The SWDE series is surface down-the-hole drilling rigs which have a drilling diameter of 90-230mm and a max drilling d
Read more >

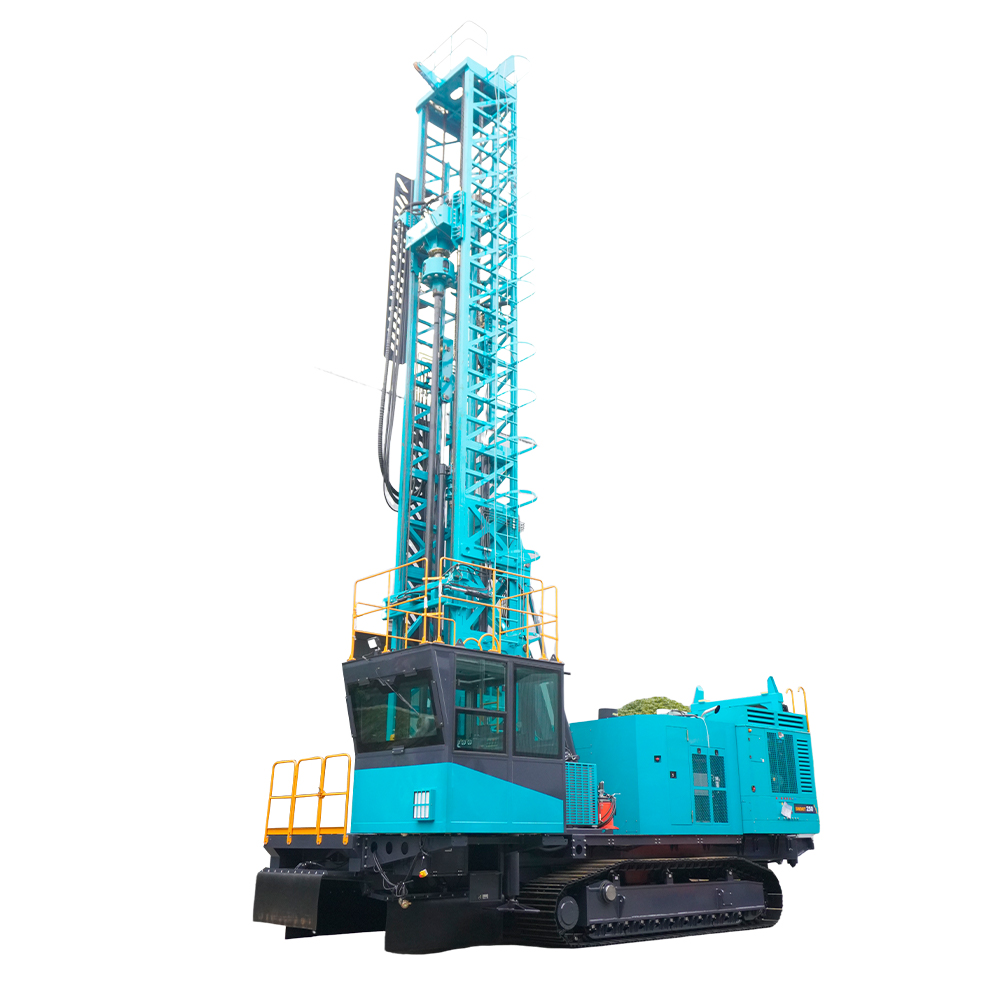

SWDRT270EL*
