SWDT115S* Hydraulic Top-hammer drill rig, 89-127mm

SWDT115S*

SWDT115S* Top-hammer drill rig is equipped with a high-efficiency hydraulic rock drill

Product description

Drilling method: Top hammer
Hole diameter: 89-127mm

● The SWDT series is the surface top hammer drill rigs with a high-eficiency hydraulic rock drill, with fast drilling rate, low energy consumption, flexible maneuverability and strong

Quick facts

Operation parameters
Hole diameter
89-127mm
Rod
T51/GT60
Tube length
3660mm
Maximum hole depth
25m
Hydraulic rock drill rig
Model
HC160QS
Impact power
25kW
Slewing torque
1612Nm
Slewing speed
0-130rpm
Air compressor
Working pressure
10bar
FAD
12.2m³/min
Engine
Brand
Cummins
Model
QSC8.9-C325
Power rating
242/2100kW/rpm
Fuel tank volume
590L
Feed system
Total length
7300mm
Feed extension
1200mm
Feed force
30kN
Pitch angle
140°
Turning angle
-20°~90°
Drill boom
Type
Folding boom
Lifting angle
-10°~70°
Folding angle
65°~165°
Swing angle
-30°~20°
Carrier
Tramming speed
3.2km/h
Traction force
110kN
Gradeability
25°
Track oscillation
±10°
Ground clearance
400mm
Dimension
Weight
16500kg
L×W×H (working)
9.5×2.6×8.6m
L×W×H (transportation)
12×2.6×3.5m

Downloads

Inquiry Now Send Email

CYTJ45 Underground Tunneling Drilling Rigs

Read more >

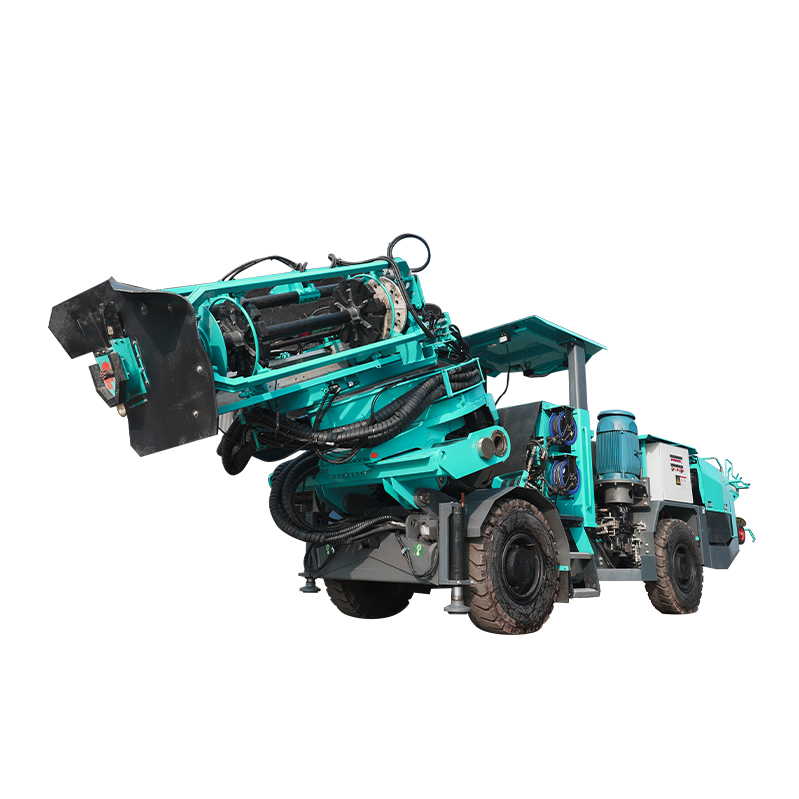

CYTC76
