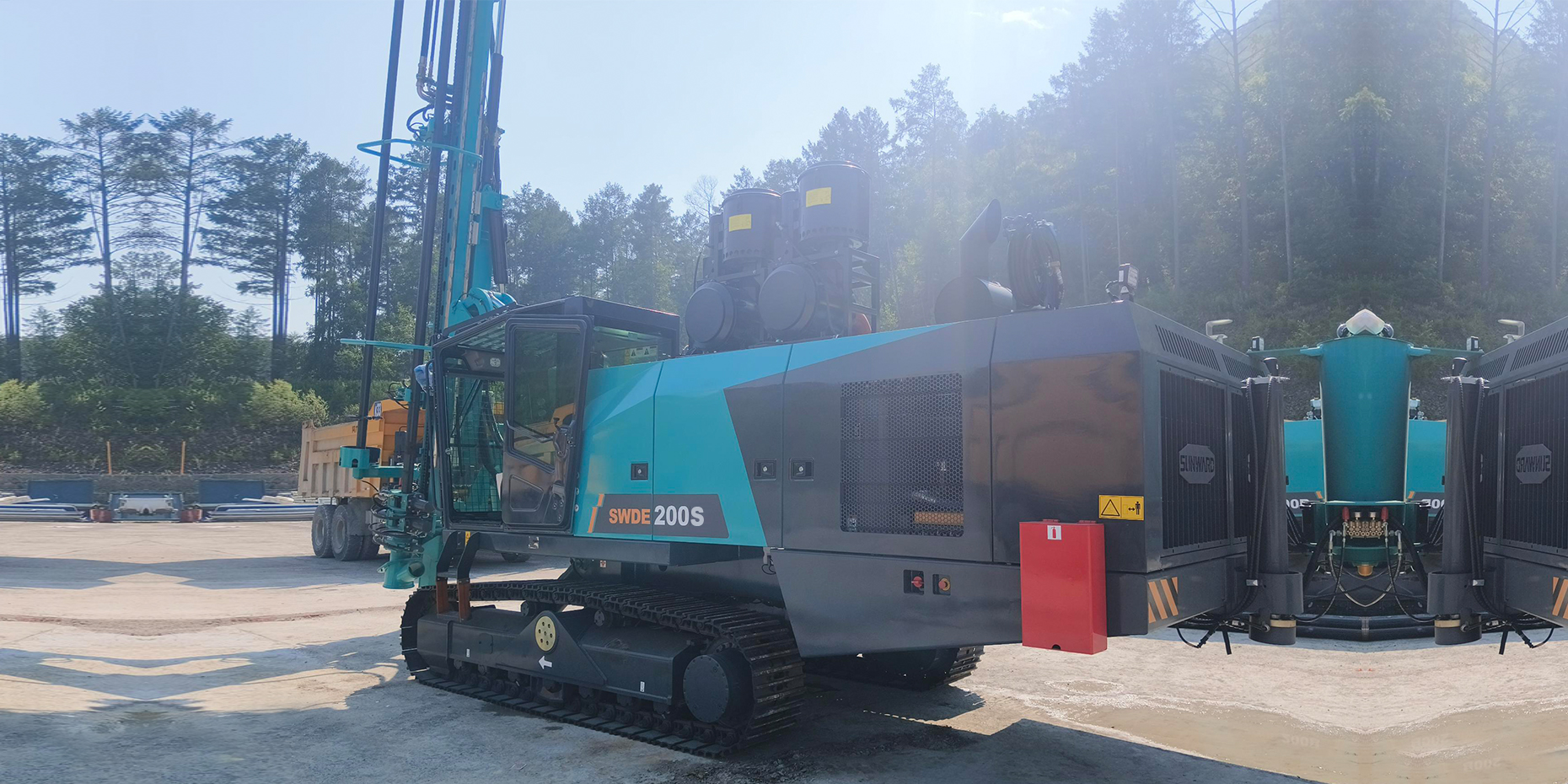

SWDE200N DHT drill rig for big hole diameter: 165-230mm
Product description
Drilling method: Down-the-hole
Hole diameter: 115-203mm
DTH-hammer: 4,5, 6 and 7 inches
-
●The SWDE series is surface down-the-hole drilling rigs which have a drilling diameter of 90-230mm and a max drilling depth of 36m.
-
●Meeting the drillingneeds of vertical, inclined and horizontal blasting holes under various geological conditions, with high hole-forming efficiency, low energy consumption and environment-friendly skills.
-
●The uniqueone-click switching between down-the-hole and cutting mode allows drilling operations on both soft and hard rock stratum, which expands the application range, reduces construction costs.
Quick facts
Operation parameters
Drilling range
115mm-203mm
DTH hammer
4",5",6",7
Drill rod diameter
89mm,102mm,114mm,127mm,140mm
Drill rod length
6m×6m /5m×6m /8m×7m
Maximum hole depth
30m/36m/56m
Air compressor
Working pressure
30Bar
FAD
28.5m³/min
Engine
Brand
CAT
Model
C18
Power
571/2100 kW/rpm
Fuel tank
1000L
Feed system
Total length
13000mm
Feed extension
1300mm
Feed force
50kN
Pitch angle
140°
Turning angle
-30~37°
Drill boom
Lifting angle
-10°~40°
Swing angle
L13° R13°
Carrier
Tramming speed
3.2km/h
Traction force
180kN
Gradeability
25°
Traction oscillation
±10°
Ground clearance
420mm
Rotary head
Rotation speed
0-150rpm
Torque
6500Nm
Dimension
Weight
27500kg
L × W × H (Working)
9.2x2.7x10.8m
L × W × H (Transportation)
12x2.7x3.6m
-
