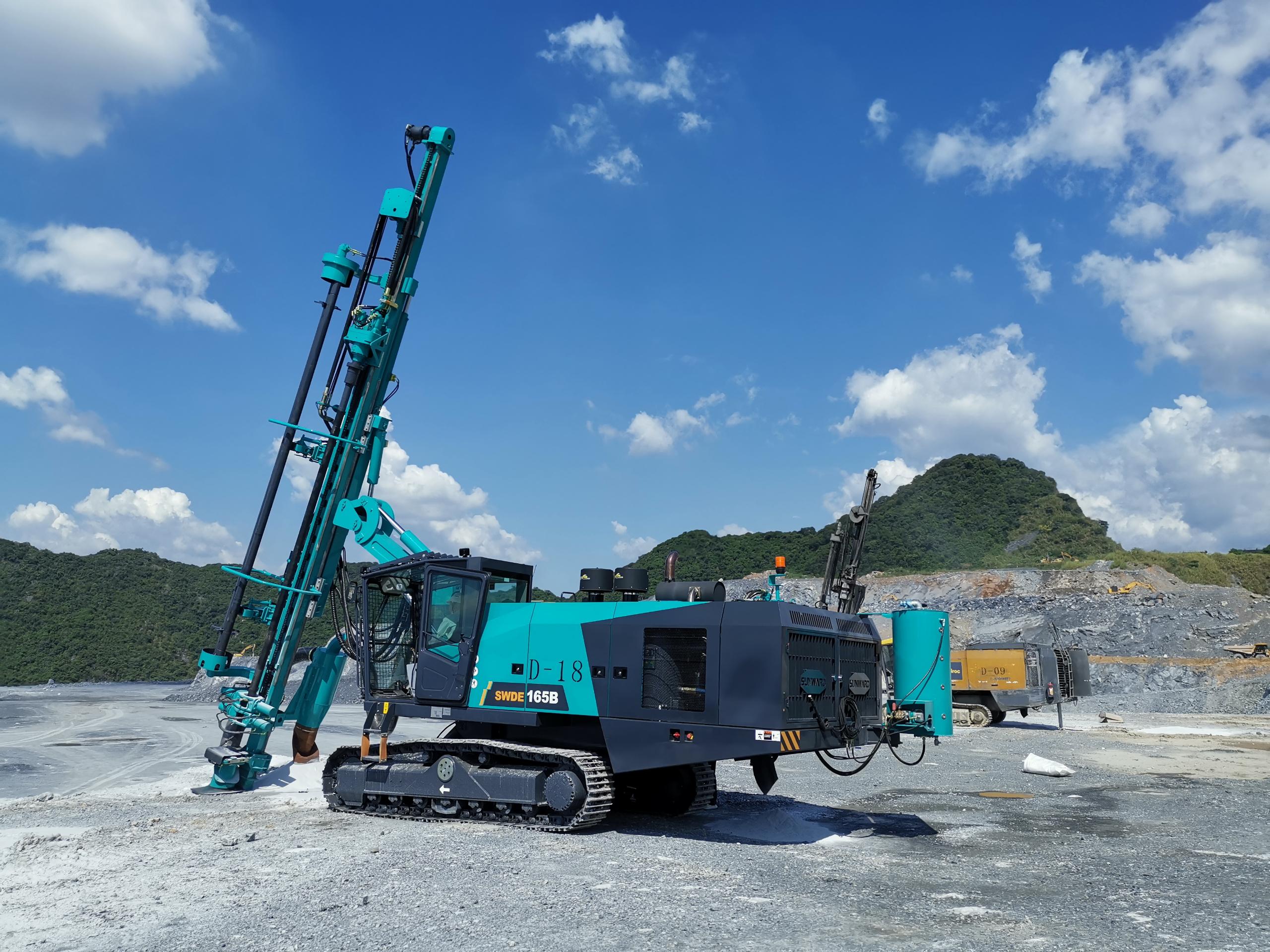

SWDE165-DTH Drilling Rig

SWDE165

Contact

SWDE165-DTH Drilling Rig

Product description

Surface drilling rig for high productivity, green and intelligent drilling and blasting

● Accurate and flexible

● Enviroment friendly

● Safe and comfortable

● Strong power

● Intelligent and efficient

● Easey maintenannce

The series of down the hole drilling diameter of 90-230mm and a maximum drilling depth of 36m. Meeting the drilling need s of vertical , inclined and horizontal blasting hole under various geological conditions with high hole-forming efficiency, low energy consumption and environment-friendly skills. The unique one-click switching between down-the hole mode allows drilling operations on both soft and hard rock stratum, which expands the application range, reduces construction costs and improves construction efficiency.

Quick facts

Parameter
SWDE 165
Drilling range
138mm 180mm
Drill hammer
5"、6"
Drill rod diameter
110mm
Drill rod length
6m×6m
Drilling depth
36m
AIR COMPRESSOR
Model
DLQ825XH BDSJ1070
Air pressure
1.38 2.1
Air volume of work
23.4m³/min 30.3m³/min
Power
216/2200 328/1800kW/rpm
ENGINE
Model
4BT3.9
Power
75/2200kW/rpm
Fuel tank
580L
PROPELLING
Length of drillrig
9230mm
Thrust stock
6500mm
Feed extension
1300mm
Thrust speed
0.5m/s
Thrust capacity
40kN
Pitch degree
140°
Overturn degree
-20° 90°
BOOM
Boom length,total
3200mm
Lifing angle
50° -30°
Swing angle
15°(L) / 45°(R)
TRAVELLING
Travel speed
2km/h
Max. traction force
125kN
Grade ability
25°
Crawler pendulum feet frame
±10°
Max. rising height from ground
480mm
ROTARY POWER HEAD
Model
DLT40B
Rotary speed
50rpm
Rotary torque
4000Nm
DIAMENSION
Gross weight
23
Working state(L×W×H)
11×3.2×3.6mm
Transportation state(L×W×H)
9.5×3.65×9.6mm
